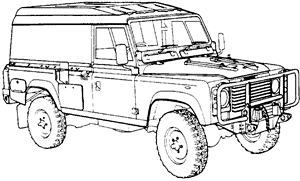

110 Perentie Survey Variant
| Specifications |
| Unladen Mass |
2280kg (Without Winch) |
| Gross Vehicle Mass (GVM) |
3200 kg |
| Gross Trailer Mass Rating |
900kg |
| Length |
4830mm |
| Height |
2040mm |
| Width |
2058mm |
| Wheelbase |
2794mm |
| Track |
1498mm |
| Fording Depth |
500mm |
| Fuel Tank Capacity |
65 Litres |
| Engine |
Isuzu 4BD1. 3.9 Litre, 4 cylinder Diesel |
| Power |
66kw @ 3200rpm |
| Torque |
245nm @ 1900rpm |
| Gearbox |
4 speed LT95A |
| Winch |
Thomas T8000M |
| |
|
| Equipment Kit CES |
12036 |
| Repair Parts Scale |
02192 |
Nomenclature: Truck, Panel, Lightweight, Survey, FFR, Winch, MC2
Liability Code: 73310
Role: The primary role of the vehicle is survey operations.
Features: The vehicle has a van type body with a single side hinged rear door and a 'safari' roof with no alpine windows. An auxiliary 28v electrical system is fitted with one bank of batteries in a special enclosure behind the rear seat. A power distribution panel and a mounting tray for radios are provided.
The vehicle has a range of approximately 550km on first class roads.
Information: Chassis modifications include points for a helicopter sling, shipping tie down and vehicle recovery points. Some applications will require the towing of a trailer of up to 900kg mass.
The appearance of the Survey vehicle is extremely similar to the much rarer Command Post variant.
|
