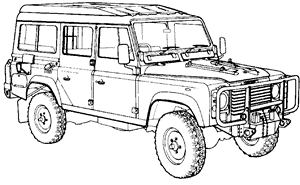

110 Perentie Senior Commander Variant
Specifications |
Unladen Mass |
2430kg (Without Winch) |
Gross Vehicle Mass (GVM) |
3200 kg |
Gross Trailer Mass Rating |
900kg |
Length |
4830mm |
Height |
2040mm |
Width |
2058mm |
Wheelbase |
2794mm |
Track |
1498mm |
Fording Depth |
500mm |
Engine |
Isuzu 4BD1. 3.9 Litre, 4 cylinder Diesel |
Power |
66kw @ 3200rpm |
Torque |
245nm @ 1900rpm |
Gearbox |
4 speed LT95A |
Winch |
Thomas T8000M |
|
|
Equipment Kit CES |
12086 |
Repair Parts Scale |
02194 |
Nomenclature: Truck, Carryall, Lightweight, Senior Commander, FFR, Winch, MC2
Liability Code: 73510
Role: The primary role of the vehicle is the movement of senior commanders and other VIP's on sealed or second class roads and under cross country conditions where the use of a normal GS vehicle is not appropriate.
Features: The vehicle has a station wagon type body with a single side hinged rear door and a 'safari' roof with no alpine windows. An auxiliary 28v electrical system is fitted with one bank of batteries in a special enclosure behind the rear seat. A power distribution panel and a mounting tray for radios are provided.
The vehicle has a range of approximately 520km on first class roads. 7 passengers including driver can be carried. Information: The Senior Commander is an Army version of the commercial Land Rover 110 series commercial vehicle. Chassis modifications include points for a helicopter sling, shipping tie down and vehicle recovery points. Some applications will require the towing of a trailer of up to 900kg mass. This version is intended to carry eight passengers without radio equipment or less passengers with radios.
|

The winch and tropical roof are clearly visible in this image
Copyright: Australian Frontline Machinery |

A side view showing the radio antenna body mount on the rear bodywork of the vehicle, as well as no alpine windows being present
Copyright: Australian Frontline Machinery |

The rear of the vehicle showing storage box and power distribution box
