The Australian Army and Air Force use a number of variants of the Perentie 110 in 1 ton 4x4, and 2 ton 6x6 configurations. This page is intended as a guide to those variants, as well as a couple of variations. Not all models have information and photos yet, but the gaps will be filled soon. Some of these vehicles were built under the initial Perentie Project, whereas others were built under the later Bushranger Project.

Much of the information on this page is taken from Publication EDE 2/90, Project Perentie Profile, Vehicle Information Brochure. Engineering Developemnt Establishment, Australian Army.

4x4 Models

6x6 Models




4x4, 1 Ton Models

Truck, Utility, Lightweight, MC2 and Truck, Utility, Lightweight, Winch, MC2

A General Service Vehicle with or without a winch for carring general cargo, or up to 8 personnel in the rear, and 2 in the front. For more details visit the Perentie GS page.

Truck, Utility, Lightweight, MC2
This is the 'basic' version and is intended to carry 1000kg (900kg if winch fitted) of general cargo or six troops and tow a trailer of up to 900kg mass. This derivative is used by the greatest variety of units within the army and is the general workhorse for most users.



Click to expand

Copyright Peter M.

Click to expand

Copyright Peter M.

Click to expand
click here for big pic


Truck, Utility, Lightweight, FFR, MC2 and Truck, Utility, Lightweight, FFR, Winch, MC2

A Fitted For Radio (FFR) land rover very similar to the general service variant. Coming with or without a winch and can cary up to 4 personnel and commuications equipment. This model is characterised by a scooped tailgate, and 2 antenna mounts on each side of the tub. For more information visit the Perentie FFR page.

Truck, Utility, Lightweight, FFR, MC2
Role: This version is intended to carry 1000kg (900gk if winch fitted) of payload made up of radio and associated equipment with two radio operators. Some applications will require the towing of a trailer of up to 900kg mass.
Features: The body has a half height fixed tailgate and an additional blackout liner is fitted beneath the canvas canopy. An auxillary 28v electrical system is fitted with two banks of batteries beneath the tray floor, one either side of the vehicle accessed through side doors. A power distribution panel is mounted against the front bulkhead and mounting holes for in service and RAVEN radios are profided. Mounts for four antennae are fixed to the sides of the tray with access holes through the side panels and the canopy.

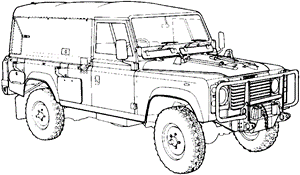

Truck, Panel, Lightweight, FFR, Winch, MC2
Role: This version is intended to carry 900kg of payload made up of radio and associated equipment with two radio oeprators. Some applications will require the towing of a trailer of up to 900kg mass.
Features: The vehicle has a hard-top with a single side hinged rear door and a 'safari' roof. An Auxillary 28v electrical system is fitted with two banks of batteries beneath the tray floor, one either side of the vehicle accessed through side doors. A power distribution panel is mounted against the front bulkhead and mounting holes for radios are provided. Mounts for four antennae are fixed to the sides of the tray with access holes through the side panels.



Click to expand

On Service in Timor, Copyright Ashley S.

Click to expand

On Service in Timor, Copyright Ashley S.

Click to expand
click here for big pic

Click to expand
click here for big pic

Click to expand

Click to expand


Truck, Utility, Lightweight, MC2, Command Post, FFR

It two of this model were produced, but one vehicle entered production, and another was built and retained by Land Rover as an engineering vehicle, and is now owned by a REMLR member. This vehicle is very similar to the Survey Vehicle but with more provision for radios. The one that did enter service was later converted to a standard FFR with canopy instead of a hard top. This vehicle, arn 48-005 is also owned by a REMLR member. For more details see Perentie Command Post


Copyright: Justin Pollard



The same vehicle as the left, but taken in 2008.
Copyright: Richard Green


Truck, Surveillance, Lightweight, Winch, MC2 (RFSV)

Regional Force Surveillance Vehicle (RFSV) for the movement of up to 3 personnel and fitted with winch. These vehicles are fittted with a different Roll Over Protection System (ROPS) to regular 110 models. 4 jerry cans are carried on the rear of the vehicle instead of the normal 2. A different bull bar is also fitted to this model as well as a raised air intake and heavy duty split rims.

For more potos of the RFSV visit Murray Connell's photos The Australian War Memorial Open Day or the Perentie Collection . For more details visit the Perentie RFSV page.

Truck, Surveillance, Lightweight, Winch, MC2 (RFSV)
Role:
This version is intended to carry up to 1200kg of payload with a driver and 2 passangers. Some applications will require the towing of a trailer up to 900kg mass.
Features: The vehicle is a ruggedised version of the basic soft-top derivative with additional stowage facilities for stores and equipment.

Click to expand

Copyright: Justin Pollard

Click to expand

Copyright: Murray Connell

Click to expand

Copyright: Murray Connell

Click to expand

Copyright: Murray Connell

Click to expand

Copyright: Murray Connell

Click to expand
click for bigger image sizing
Copyright Ian Withnall.

Click to expand
click for bigger image sizing
Copyright Ian Withnall.

Click to expand
click for bigger image sizing
Copyright Ian Withnall.

Click to expand
click here for big pic


Truck, Surveillance, Lightweight, Winch, MC2 (RFSV+) - Upgraded under Overlander 2A

Originally built as a RFSV , these vehicles were upgraded under Project Overlander stage 2A. Changes unluded 2 spare tyres on the left hand side at the rear replacing the two kerry cans, allowing for more storage inside the vehicle where the spares were moved from. Waist mounted equipment racks (removable) and other improvements and changes. For more details see the Perentie RFSV Page . The + notation has been added by REMLR to differentiate from the original configuration vehicles.

Truck, Surveillance, Lightweight, Winch, MC2 (RFSV+) - Upgraded
Role:
This version is intended to carry up to 1200kg of payload with a driver and 2 passangers. Some applications will require the towing of a trailer up to 900kg mass.
Features: The vehicle is a ruggedised version of the basic soft-top derivative with additional stowage facilities for stores and equipment.

RFSV
Copyright: Unknown

RFSV
Copyright: Unknown

RFSV
Copyright: Unknown

RFSV
Copyright: Australian Frontline Machinery.
51-694 at Auction in 2013. This vehicle was damaged.

RFSV
Copyright: Australian Frontline Machinery.
51-694 at Auction in 2013. This vehicle was damaged.

RFSV
Copyright: Australian Frontline Machinery.
51-694 at Auction in 2013. This shows the rear step

RFSV
Copyright: Mark Kendrick.
RNSW Lancers' Parade photos of 51-586, 2014

RFSV
Copyright: Mark Kendrick.
RNSW Lancers' Parade photos of 51-586, 2014

RFSV
Copyright: Mark Kendrick.
RNSW Lancers' Parade photos of 51-586, 2014




Truck, Carryall, Lightweight, Senior Commander, FFR, Winch, MC2

A station wagon model for carrying senior commanders or VIPs and fitted with a radio and with winch. For more details visiit the Perentie Senior Commander page.

Truck, Carryall, Lightweight, Senior Commander, FFR, Winch, MC2
Role: This version is intended to carry nine passangers without radio equipment or four passangers with radios. Some applications will require the towing of a trailer of up to 900kg mass.
Features: The vehicle has a station wagon type body with a single side hinged rear door and a 'safari' roof. An auxillary 28v electrical system is fited with one bank of batteries in a special enclosure behind the rear seat. A power distribution panel and a mounting tray for radios are provided.

Click to expand
click here for big pic

Click to expand
click here for big pic

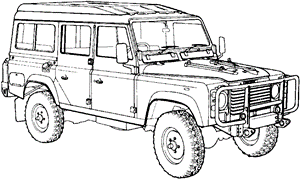

Truck, Carryall, Lightweight, Personnel Carrier, MC2

Also a station wagon, for the movement of up to 9 personnel. No winch or radios are fitted. For more details visit the Perentie Carryall Personnel page.

Truck, Carryall, Lightweight, Personnel Carrier, MC2
Role: This version is intended to carry ten passangers. Some applications will require the towing a trailer of up to 900 kh in mass.
Features: This vehicle has a station wagon type body with a single side hinged rear door and a 'safari' roof.

Click to expand
click here for big pic

Click to expand
click here for big pic


Truck, Panel, Lightweight, Survey, FFR, Winch, MC2

A survey vehicle fitted with a winch and radio and can carry up to 4 personnel.

This vehicle is externally very similar to the Command post, but was built in greater numbers. For more details visit the Perentie Survey page.


A side view showing the van roof of the vehicle, as well as no alpine windows being present
Copyright: Australian Frontline Machinery


Copyright: Australian Frontline Machinery


Copyright: Australian Frontline Machinery


A rear view showing the side hinge door open
Copyright: Australian Frontline Machinery


The rear of the vehicle ventilation and power distribution box
Copyright: Australian Frontline Machinery


Truck, Surveillance and Reconnaissance Vehicle, Lightweight, FFR, W/Winch, MC2 (SRV)

A Surveillance vehicle for the movement of 4 personnel (2 in certified rear seating). This vehicle is fitted with a winch. For more details visit the Perentie SRV page.

SRV
Copyright: Department of Defence
On Patrol in Afghanistan with a LRPV in the distance.

SRV
Copyright: Unknown
Deployed on Peacekeeping operations.

SRV
Copyright: Grubby Fingers

SRV
Copyright: Glenn Smith

SRV
Copyright: Grubby Fingers

SRV
Copyright: Glenn Smith


Truck, Surveillance and Reconnaissance Vehicle (SF), Lightweight, FFR, W/Winch, MC2 (SRV (SF))

Similar to above, but modified Special Forceses' needs in mind. This vehicle also appears to have a shelf for carrying extra equipment at the rear, and a different windscreen. For further details visit the Perentie SRV(SF) pahe

Click to expand
click here for big pic

Click to expand
click here for big pic

Click to expand
click here for big pic


Fitted For Line

This does not appear to be an official variant, rather a modified general service vehicle. It has been modified with the neccessary equipment to lay communications and other cables.




Sallyman

These Defender 130's are not used by the Army, and are not "perentie" vehicles. However as they are used alongside the Perentie by the Salvation Army they have been included here. These are modified Defender 130 utes with specially built modules on the back.

Click to expand

Copyright: Ian Patrick


TD5 Hardtop

Again, whilst not a true "Perentie" these vehicles are modified Defender vehicles again. In this case on special order by the Australian Army. They are 2 door hard tops with storage for equipment and a jerry can in 2 side lockers, and bench seats in the rear of the vehicle. These only have a short service life, but are far cheaper to procure. They were purchased as a stopgap to fill holes in the supply of 110 perentie vehicles. For more photos of this model visit the Stopgap TD5 page.

Click to expand

Copyright Ashley S

Click to expand

Click to expand




6x6, 2 Ton Models

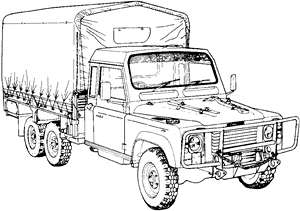

Truck, Cargo, Light, MC2 and Truck, Cargo, Light, Winch, MC2

For the movement of personnell and cargo. They can be with or without a winch.

For more photographs of the 6x6 GS visit the Perentie Collection and for more details visit the Perentie 6x6 GS page

Truck, Cargo, Light, Winch, MC2
Role:
This is the 'basic' version and is intended to carry 2000kg of payload or twelve troops. Some applications will require the towing of a trailer of up to 1500kg mass.
Features: The vehicle has an alluminium tray body with dropsides and tailgate. The canopy has front and rear bows with longitudial supports, including a large center extrusion for troops to walk on when deploying camouflage nets. Troop seating which can be arranged for side and center seating is provided.



Click to expand

Copyright: Justin Pollard
Click to expand
click for bigger image sizing
Copyright Ian Withnall.
Click to expand
click for bigger image sizing
Copyright Ian Withnall.
Click to expand
click here for big pic




Truck, Ambulance, Light, 4 Litter, FFR, Winch, MC2

These 6x6 vehicles have a fiberglass module fitted which can accomodate injured personnel. They are all fitted with winches

For more photos of this variant visit the Perentie Collection and for more invormation visit the Perentie 6x6 Ambulance page.

Truck, Ambulance, 4 Litter, FFR, Winch, MC2
Role:
The vehicle is to carry four patients on stretchers or eight seated casualties.
Features: The vehicle has a steel framed fiberglass modular body with a single lift up rear door. The module is air conditioned. A radio is fitted in the cab. A bin is fitted above the cab roof for the personal equipment of the patients. The module is designed to be readily removable when the base vehicle is unserviceable.

Click to expand
click for bigger image sizing
Copyright Ian Withnall.

Click to expand
click for bigger image sizing
Copyright Ian Withnall.

Click to expand
click for bigger image sizing
Copyright Ian Withnall.

Click to expand

Copyright Ian Patrick

Click to expand

Copyright Ian Patrick

Click to expand

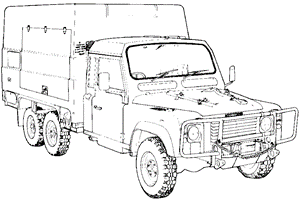

Truck, General Maintenance, Light, Winch, MC2

Land Rover 6x6 General Maintenance Vehicle (GMV) fitted with module, which is equipped for general equipment repair and fitted with winch.

For more photos of this variant visit the Perentie Collection and the Roseworthy Collection . For more details visit the Perentie 6x6 General Maintenance page.

Truck, General Maintenance, Light, Winch, MC2
Role:
The vehicle is to carry out field maintenance and repairs of vehicles, weapons, aircraft, electrical equipment and welding. It also provides an 'Auto Club' roadside repair service during convoy movements.
Features: The vehicle has a steel framed fiberglass modular body with a single lift up rear door and lift-up doors on each side. A swing down work bench is profided on the left side of the module. A modular workbench and several stowage boxes/racks are supplied which can be quickly arranged to suit particular user applications. The module is designed to be readily removable when the base vehicle is unserviceable.

Click to expand
click for bigger image sizing
Copyright Ian Withnall.

Click to expand
click for bigger image sizing
Copyright Ian Withnall

Click to expand

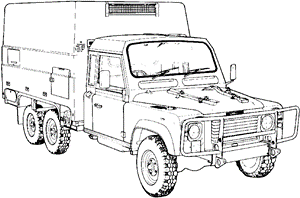

Truck, Electronic Repair, Light, MC2

Land Rover 6X6 Electronic Repair Vehicle (ERV) fitted with module, which is equipped for Electronic equipment repair.

Truck, Electronic Repair, Light, MC2
Role:
The vehicle is to provide an environmentally controlled facility for field maintenance and repairs of electronic equipment.
Features: The vehicle has a steel-framed fiberglass modular body with a single side-hinged rear door. Modular stowage boxes/racks are supplied which can be quickly arranged to suit particular user applications. The module is designed to be readily removable when the base vehicle is unserviceable.




Truck, COMSEC Repair, Light, MC2

Land Rover 6X6 fitted with module, which is equipped for COMSEC equipment repair.

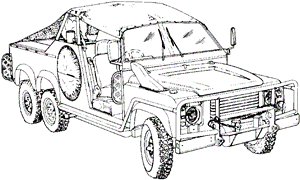

Truck, Long Range Patrol, Light, Winch, MC2 (LRPV)

Land Rover 6X6 Long Range Patrol Vehicle (LRPV) fitted with winch.

More photos of the LRPV can be found in the Perentie Collection as well as the LRPV Info page, LRPV when new page and LRPV in service page.

Truck, Long Range Patrol, Light, FFR, Winch, MC2
Role:
This version is used to carry out medium and long range reconnaissance over continental Australia with a crew of thee and their stores and equipment.
Features: This vehicle has an integrated cab and body structure with stowage facilities for equipmtn and rations and a low profile canopy over the crew area. The cab has two seats, no doors and a removable windscreen. Mounts for two machine guns are provided. A 250cc motorcycle is carried across the back of the body.

Click to expand
click for bigger image sizing
Copyright Ian Withnall.

Click to expand
SASR 6x6 click here for big pic
At Cooma 1998

Click to expand
SASR 6x6 click here for big pic
At Cooma 1998

Click to expand
click here for big pic
New and in storage in the 1990's. Copyright Bob Dimer
Click to expand
click here for big pic
Iraq, 2003. Dept of Defence.
Click to expand
click here for big pic
Loading to go to Afghanistan, late 2001. Dept of Defence.

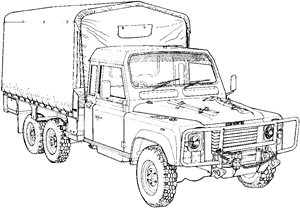

Truck, Air Defence, Light, FFR, Winch, MC2

Land Rover 6x6 Air Defence (Rapier or RBS 70) vehicle Fitted For Radio (FFR) and with winch.

More photos of this variant can be found on this page in the Perentie Collecition. More information on this variant can be found in the Perentie 6x6 Air Defence Variant page.

Truck, Air Defence, Light, FFR, Winh, MC2
Role:
This version carries either the Rapier or RBS-70 anti-aircraft missile system. It will tow the rapier trailer units.
Features: This vehicle has an aluminium tray body with a stepped center section at the rear for heavy equipment. Racking, complete with bow frames and canvas canopy, is provided down each side of the tray for missiles and equipment. An auxillary 28v electrical system is fitted with two batteries beneath the tray floor and a power distribution panel in the cabin. An antenna mount is provided in the top right mudguard.

Click to expand
click for bigger image sizing
Copyright Ian Withnall

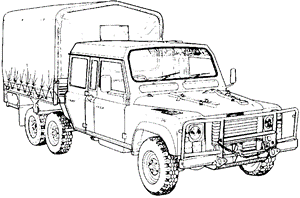

Truck, Cargo, Light, Crew Cab, FFR, Winch, MC2

Land Rover 6x6 Crew Cab for the transport of up to Qty x 5 personnel with cargo and fitted with winch.




Truck, Infantry Carrier, Light, FFR, Winch, MC2 (IIMV)

Land Rover 6x6 for the movement of an infantry section (Qty x 8 in certified rear seating) and Fitted For Radio (FFR) and with winch. These vehicles were an interim Infantary Mobility vehicle (IIMV) in the Bushranger project which spawned the armoured Bushmaster Infantary Mobility Vehicle (IMV). For more details and photos visit the Land Rover Bushranger IIMV page.

Click to expand

Copyright: Murray Connell

Click to expand

Copyright: Murray Connell

Click to expand

Copyright: Murray Connell


Truck, Assault Pioneer, Light, Winch, MC2

Land Rover 6x6 for the movement of an infantry Assault Pioneer section (Qty x 4 in certified rear seating) and fitted with winch. For more photographs and details visit the Land Rover Bushranger Assault Pioneer page.


A front view showing the winch and roof mounted spares on 202-175
Copyright: Australian Frontline Machinery


A Side view with the canopy sides rolled down which makes it hard top distinguish from some other variants.
Copyright: Australian Frontline Machinery


202-260 with the side canopy rolled up, and a number of jerry cans fitted in the racks.
Copyright: Australian Frontline Machinery


Truck, Light, Direct Fire Weapons, FFR, Winch, MC2

Land Rover 6x6 for the movement of Qty x 6 personnel (Qty x 4 in certified rear seating) to provide protective fire to troops and Fitted For Radio (FFR) and winch. For more photos and details visit the Land Rover Bushranger DFW page.


A front view showing one spare and one empty mount.
Copyright: Australian Frontline Machinery


Interior with lockers closed.
Copyright: Australian Frontline Machinery


The vehicle from the rear, again externally little to differentiate from other models.
Copyright: Australian Frontline Machinery


Truck, Mortar Carrier, Light, FFR, Winch, MC2

Land Rover 6x6 for the movement of an infantry mortar section in (Qty x 8 in certified rear seating) and Fitted For Radio (FFR) and winch. For more details visit the Land Rover Bushranger Mortar Carrier page.


Frontal view. Only one spare is mounted on the cab roof for this variant.
Copyright: Australian Frontline Machinery


Sideways seats in the back.
Copyright: Australian Frontline Machinery


The rear facing seats.
Copyright: Australian Frontline Machinery


Parakeet Communications Vehicle

This one is a bit of a mystery. There appears to be no army record of this vehicle existing, however that should not come as a surprise as dur to it's role it would be reasonably heavily classified!

The Parkaeet module is a bolt on module that can be fitted to trucks as well as land rovers. Parakeet modules have even been seen on dial cab 6x6's. However untill mroe information is available we'll just have to leave you with a few photos!

Click to expand
click here for big pic

Click to expand

Copyright Ian Patrick

Click to expand

Copyright Ian Patrick


Armygeddon

Armygeddon was a 6x6 GS that was modified by apprentices and contractors as a PR vehicle. It had a blown v8 fitted, locking diffs and various other modifications so that it could be used for purnouts and PR work. It sported a number of paint schemes in its life, however due to cost it was retired from service in 2009.





Go to www.remlr.com   Go Back
